Automatic Filling Machine Line With Self-Cleaning System

Application:

Automatic filling machine line with self-cleaning system, it is suitable for automatic bottled and canned in sauce, tomato sauce, ketchup, paste, ginger garlic paste, chutney, mayonnaise, tomato paste etc.

Packaging Type: It is suitable for various materials, various bottle types, and has a wide range of applications.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples

Model No.	VK-PF-6
Power	3.0-3.5KW
Voltage	AC380V/50Hz
Filling scope	100-500ml  500ml-5L (optional)
Speed	800-1270BPH (for 5L bottle)
Precision	≤±0.5-1%ml(for 5L bottle)
Weight	830KGS
Bottle height	30-350mm
Bottle width	Φ10-Φ200mm
Dimension	1700*1300*2100mm

1. Accurate and reliable filling;

2. Independent cylinder quantification system; precisely control the speed of the cylinder to realize the precise position movement of the quantitative cylinder.with the siemens programmable controller(plc) and taiwan wen view touchscreen terminal, the filling process is accurate and reliable;

3. Multi-language human-machine color operation interface easy to set parameters;

4. Electric adjustment nozzle height say goodbye to the era of manually adjusting the height of the bottle; through the precision gear transmission system, with the dc motor, the bottle type is switched by the high and low lifting buttons to make the use easier;

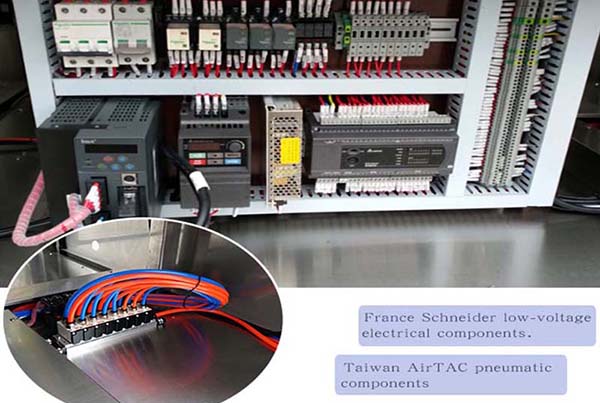

5. Electrical components using well-know brands;

6. Stable and durable; electrical components using well-known brands, we pay attention to every detail.

An automatic filling machine line with a self-cleaning system is a type of packaging equipment designed to fill and package various types of products, such as liquids, powders, and granules, into containers such as bottles, jars, cans, and pouches.

The self-cleaning system of this filling machine line is an innovative feature that ensures efficient and hygienic production. It eliminates the need for manual cleaning between production runs, reducing downtime and increasing productivity.

The system works by automatically flushing the filling system with a cleaning solution, ensuring that all parts of the machine that come into contact with the product are thoroughly cleaned. The cleaning process can be customized according to the product being filled and can be programmed to run at specific intervals or at the end of each production run.

In addition to the self-cleaning system, an automatic filling machine line may also include other features such as automatic bottle feeding, filling, capping, labeling, and coding. It can be customized to suit the specific needs of the product being filled and the packaging requirements.

The benefits of using an automatic filling machine line with a self-cleaning system are numerous. It ensures product quality and safety by preventing contamination and reduces the risk of product recalls. It also increases production efficiency by reducing downtime and minimizing the need for manual intervention.

Overall, an automatic filling machine line with a self-cleaning system is a highly advanced and efficient packaging solution for various industries, including food and beverage, pharmaceuticals, cosmetics, and chemicals.
