Automatic Honey Bottle Filling Machine With Piston

An Automatic honey bottle filling machine with piston is a type of packaging equipment specifically designed for filling bottles with honey. The machine uses a piston to dispense the honey into the bottles with high precision and accuracy. The piston is typically made of stainless steel or other food-grade materials to ensure that the honey is not contaminated during the filling process.

The machine typically includes a hopper, where the honey is stored before it is dispensed into the bottles. The hopper is usually equipped with a heating system to keep the honey in a liquid state, making it easier to fill the bottles.

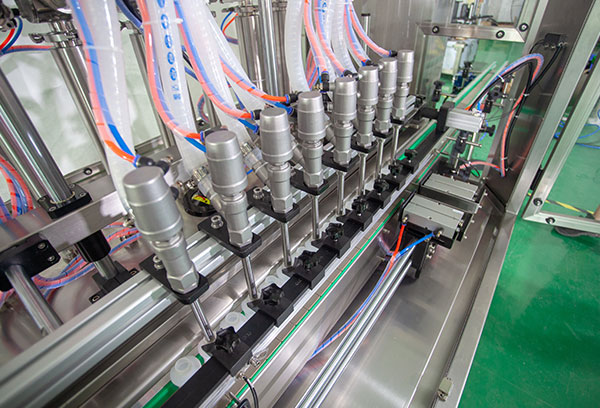

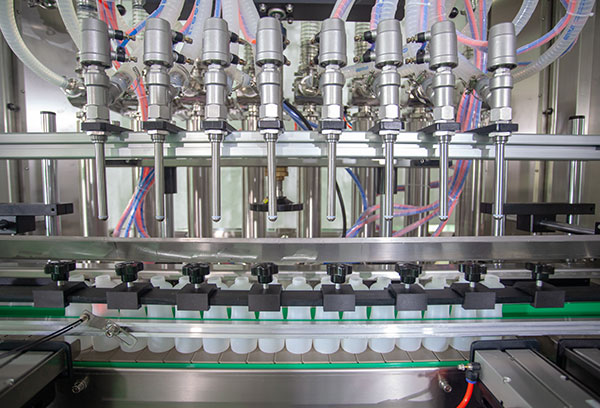

The machine is also equipped with a filling nozzle, which is connected to the piston. The nozzle is inserted into the bottle, and the piston is activated to dispense the honey into the bottle. The machine is also equipped with a sensor to detect the level of honey in the bottle, and the piston stops dispensing when the bottle is full.

The machine can also be equipped with an automatic capping machine, which applies and tightens the caps on the bottles. The bottles then move through a labeling machine, which applies labels to the bottles.

The machine is also equipped with advanced features like a touch screen interface, which allows for easy operation and monitoring of the machine. It can also be programmed to dispense a specific amount of honey into each bottle, which ensures that each bottle is filled to the exact specifications.

An Automatic honey bottle filling machine with piston is highly efficient and accurate, it can fill bottles at a much faster rate than manual filling methods, which can save a significant amount of time and labor costs. They also minimize the risk of human error, which can be a major concern when filling bottles by hand.

In addition, these machines are also flexible, they can handle a variety of bottle sizes and styles, which means that they can be used for a wide range of products. This makes them a versatile option for companies that produce multiple products or have a variety of packaging needs.

Overall, an Automatic honey bottle filling machine with piston is a highly efficient and effective packaging solution for companies that produce honey. They offer many benefits over manual filling methods, including increased speed and efficiency, flexibility, and advanced features such as automatic filling, capping, and labeling. They also offer a high level of precision, ensuring that each bottle is filled to the exact specifications, which is essential for maintaining product consistency and quality.

Application:

Automatic honey bottle filling machine with piston, it is recommended for a wide variety of products.

Examples:

Honey, ketchup, chili sauce, pizza sauce, peanut butter, chocolate sauce, chili sause, cream, shower gel, shampoo etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Sample:

Machine Parameters:

Filling Volume	100ml-1000ml 250ml-2500ml 500ml-3000ml 500ml-5000ml
Filling Material	Petroleum jelly, vaseline, face cream, ketchup, tomato sauce, mayonnaise, jam, paste, oil, yogurt, cream, hot sauce, chili sauce, honey, etc.
Filling nozzle	2	4	6	8	10	12
Capacity（B/H)	800-1000	1500-1800	1800-2500	2500-3000	3000-3600	3600-4200
Filling Precision	Less Than 0.5%
Power supply	220V Single phase 50HZ 380V Three phase 50HZ

Main Configuration:

Mesa, around the side plates are of high quality 304 stainless steel or other FDA approval of material production, and material contact parts for 316L quality stainless steel.

Automatic Servo Filling Machine
No.	Descriptions	BRAND	ITEM	Remark (made in China)
1	Servo Motor	Panasonic	0.45KW	Japan
2	Reducer	Fenghua	ATF1205-15	Taiwan
3	Conveyor Motor	ZhenYu	YZ2-8024	China
4	servo drivers	Panasonic	LXM 23DU15M3X	Japan
5	PLC	Siemens	TM218LDALCODR4PHN	German
6	Touch Screen	Siemens	HMZGXU3500	German
7	Frequency Converter	Danfoss	ATV12H075M2
8	Photo electricity of Inspect bottle	OPTEX or equal brand	BRF-N	Japan
9	Pneumatic Element	Airtac		Taiwan
10	Rotary Valve		F07/F05	No Need for Oil
11	Pneumatic actuator		F07/F05	No Need for Oil
12	Low-Voltage Apparatus	Schneider		FRANCE
13	proximity switch	ROKO	SC1204-N	Taiwan
14	Bearing			China
15	Lead Screw	TBI		Taiwan
16	Butterfly valve	CHZNA		China
