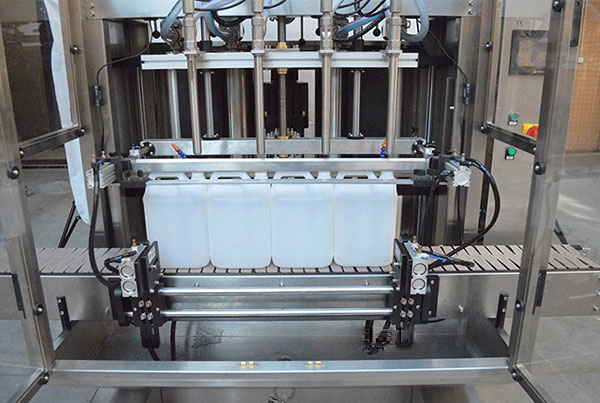

The filling process begins when the operator places an empty Jerry can onto the machine’s filling platform. The machine then uses a piston to draw a predetermined volume of liquid from a holding tank or supply line and into the Jerry can. The volume of liquid dispensed can be adjusted by the operator to meet specific filling requirements.
One of the key benefits of using an automatic Jerry can liquid piston filling machine is its ability to fill Jerry cans with a high degree of accuracy and consistency. The machine’s piston ensures that each Jerry can is filled with the same volume of liquid, reducing the risk of overfilling or underfilling. This is particularly important in industries where precise filling volumes are critical, such as the chemical or pharmaceutical industries.
In addition to its accuracy, an automatic Jerry can liquid piston filling machine is also highly efficient. These machines can fill numerous Jerry cans in a short period of time, allowing for large-scale production and reducing the time and labor required for manual filling. This can help to increase productivity and reduce costs in a manufacturing or industrial setting.
Another advantage of using an automatic Jerry can liquid piston filling machine is its ability to handle a wide range of liquids. Many machines are equipped with a variety of nozzles and fittings to accommodate different types and viscosities of liquids, making them suitable for use in a variety of applications.
Overall, an automatic Jerry can liquid piston filling machine is a highly precise and efficient tool for filling Jerry cans with a variety of liquids. Its accuracy, speed, and versatility make it an invaluable asset in industrial and manufacturing settings where large quantities of Jerry cans need to be filled quickly and accurately.
Application:
Automatic Jerry Can Liquid Piston Filling Machine, it is suitable for food, chemical, pharmaceutical, pesticide, cosmetic, and health care products, such as honey, edible oil, chili sauce, eye drops, oral liquid, syrup, liquid glue, wine, soy sauce, jam, shampoo, detergent, shampoo, detergent, oil, dairy products, etc.
Packaging Type:
Suitable for various bottle types of 500-5000ml, Suitable for filling bottles with various shapes, such as square, round, elliptical, etc.
Kindly Reminder:
We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples:

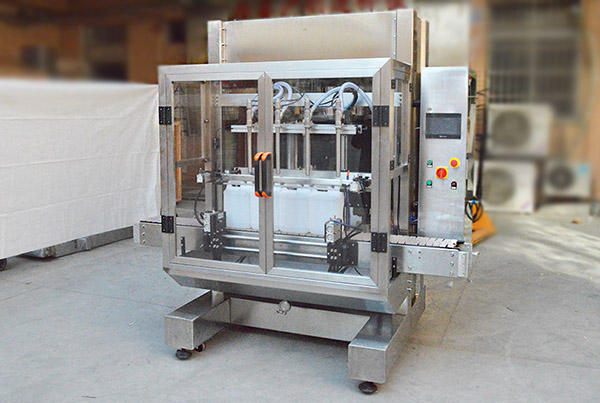

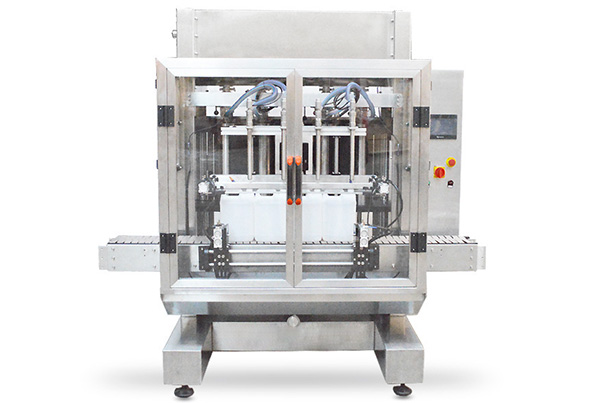

Product Description:

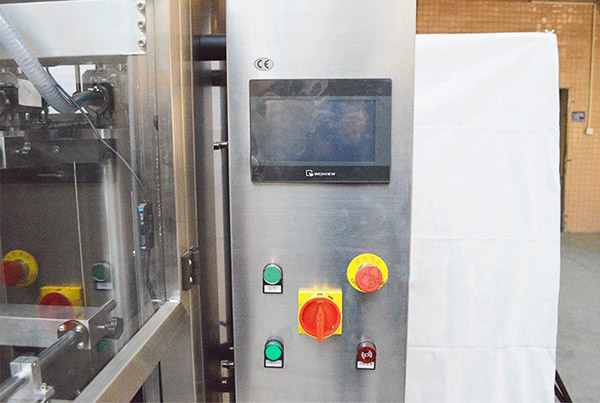

The automatic liquid filling machine adopts the quantitative filling principle of the plunger. The bottle feeding, positioning, filling and bottle output are controlled automatically by PLC, conforming to the GMP standard. It is suitable for the liquid filling of medicine, food, daily chemical, pesticide, and the fine chemical industry.
Technical parameter:
| Filling heads | 4 (filling heads number is based on production speed) |
| Filling range | 100-1000ml(can be customized according to customers requirements) |
| Filling speed | 2000-3000 BPH |
| Filling accuracy | ±1% |
| Power, voltage | 50/60Hz, AC220/380V |
| Air consumption | 0.4-0.8Mpa |
| Dimension | 2000*1100*2100mm L*W*H |
| Weight | 500KG |
1) Simple structure in linear type, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts, electric parts, and operation parts.
3) Servo motor drive piston filling machine, filling accuracy is good and stable.
4) Easy to clean, all materials contact part with quick removal structure, can also configure the customer’s CIP cleaning system, cleaning time within 15 to 30 minutes.
5) Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.
6) It can be used alone or connected to production lines, and can be combined with a capping machine, labeling machine, inkjet printer, etc., to save labor and increase output.
