An automatic ketchup filling machine line with labeling machine is a fully automated system used to fill and label bottles or containers with ketchup, a popular condiment made from tomatoes, vinegar, sugar, and spices. The system consists of several interconnected machines that work together to efficiently and accurately fill and label the containers with ketchup.

The ketchup filling machine is typically the first station in the automatic filling line. It consists of a hopper or tank that holds the ketchup and a series of nozzles or filling heads that dispense the ketchup into the containers. The filling machine can be designed to fill containers of various shapes and sizes, and it can be adjusted to dispense different amounts of ketchup depending on the needs of the production process.

The ketchup filling machine is typically followed by a labeling machine, which applies labels to the containers. The labeling machine consists of a series of rollers that transport the labels and a mechanism that applies the labels to the containers as they pass through the machine. The labeling machine can be programmed to apply labels to specific areas of the containers, and it can be adjusted to apply labels of different sizes and shapes.

The automatic ketchup filling machine line with labeling machine is typically controlled by a central computer system, which coordinates the operations of the different machines in the line. The computer system can be programmed to control the speed of the filling and labeling process, and it can be set to stop the production line if an error occurs.

The automatic ketchup filling machine line with labeling machine is highly efficient and accurate, and it can produce large quantities of ketchup in a short amount of time. It is commonly used in the food processing industry, where it helps companies produce high-quality ketchup products that meet the needs of consumers.

In addition to the filling and labeling machines, the automatic ketchup filling machine line may also include other machines, such as conveyors, palletizers, and packaging equipment. These machines work together to transport the filled and labeled containers to other parts of the production process, where they may be packaged or shipped to customers.

Overall, the automatic ketchup filling machine line with labeling machine is a powerful and effective tool for producing ketchup products. It helps companies increase their productivity and reduce their costs, while also producing high-quality products that meet the needs of consumers.

Application:

It is suitable for the quantitative filling of various oils such as ketchup, tomato sauce, mayonnaise, jam, paste, oil, yogurt, cream, hot sauce, chili sauce, honey, etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, and Others.

Kindly Reminder:

Automatic Ketchup Filling Machine Line With Labeling Machine



ModelVK-LFH026
Filling Range50-1000ml(Customizable)
Filling Speed30-40 bottles/min(100-500ml range)
Measurement accuracy±1%
Power220V/380V, 50Hz, 3.5KW
Working pressure0.6-0.8MPa
Weight850kg
SizeL3800*W1220*H1800(mm)

1. Touch screen control panel makes it more convenient to adjust parameters. It can fill liquid by entering a certain filling range, and the visual working data helps you fill liquid more accurately

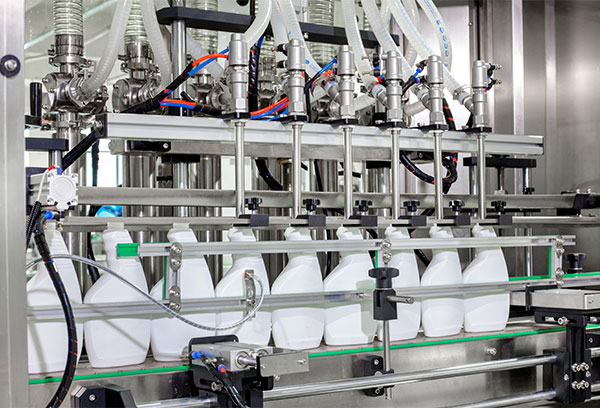

2. The filling nozzle is with anti-dripping design, ensuring production cleanliness. Each nozzle can be controlled separately. We can also customize the 2/6/8 filling nozzle of this machine.

3. The electric eve is designed to detect bottles, and prevent missing or wasting bottles, It will not fill liquid if no bottle passes through, reducing production error.

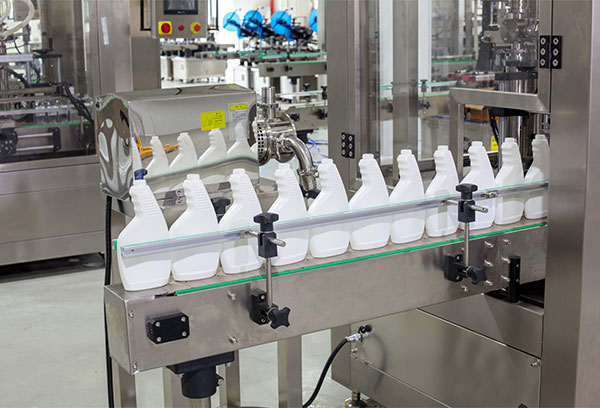

4. With a conveyor belt that can transfer bottles automatically, this machine can work with a capping machine and labeling machine to realize automated production Improve your working efficiency greatly.

5. Servo motor ensures the machine work stably and fast. Make the machine suitable for fill paste and liquid.
