An automatic liquid and paste filling machine is a type of automated packaging equipment that is designed to dispense precise amounts of liquids and pastes into containers. These machines are commonly used in the food, pharmaceutical, and chemical industries to fill bottles, jars, pouches, and other containers with products such as sauces, condiments, syrups, creams, lotions, gels, and pastes.

There are many different types of automatic liquid and paste filling machines available on the market, and they can vary in terms of their filling capacity, accuracy, and speed. Some machines use volumetric filling methods, which dispense liquids or pastes based on a specific volume or weight. Others use gravimetric filling methods, which measure the weight of the product being dispensed.

Automatic liquid and paste filling machines can be equipped with various features to improve their performance and accuracy. For example, some machines have built-in scales or load cells to measure the weight of the product being dispensed, and others have automatic shut-off valves to prevent overfilling. Some machines also have multi-head filling nozzles to increase filling speed, and others have controls to adjust the filling speed and volume based on the viscosity of the product being dispensed.

Overall, an automatic liquid and paste filling machine can help to improve the efficiency and accuracy of the filling process, and can be an essential piece of equipment for businesses in a variety of industries.

Application:

Suitable for the filling of some large particle sauce products, such as: chili sauce, mushroom sauce, spicy sauce, seafood sauce, beef sauce, bean paste, tomato paste, bbq sauce, ginger garlic paste, chutney, mayonnaise, tempeh sauce and other sauce products.

Packaging Type:

Suitable for various bottle types of 500-5000ml, Suitable for filling of bottles with various shapes, such as square, round, elliptical, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples

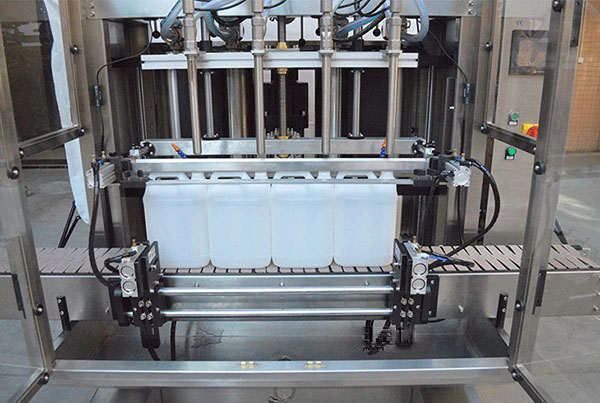

Automatic Liquid And Paste Filling Machine

Product Description:

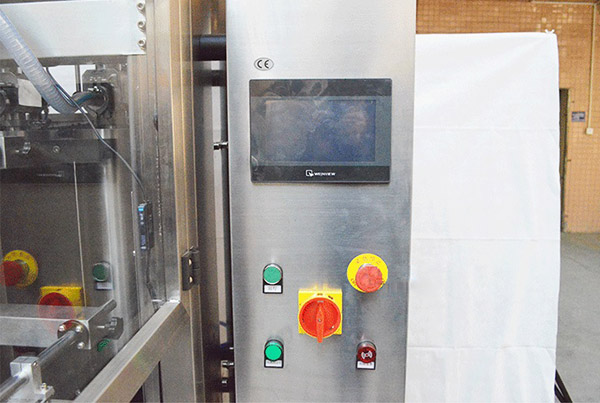

The automatic liquid filling machine adopts the quantitative filling principle of plunger. The bottle feeding, positioning, filling and bottle output are controlled automatically by PLC, conform to the GMP standard. It is suitable for liquid filling of medicine, food, daily chemical, pesticide and fine chemical industry.

Technical parameter:

Filling heads4 (filling heads number is based on production speed)
Filling range500-5000ml(can be customized according to customers requirements)
Filling speed2000-3000 BPH
Filling accuracy±1%
Power, voltage50/60Hz, AC220/380V
Air consumption0.4-0.8Mpa
Dimension2000*1100*2100mm L*W*H
Weight500KG

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Servo motor drive piston filling machine,filling accuracy is good and stable.

4) Easy to clean, all materials contact part with quick removal structure, can also configure the customer’s CIP cleaning system, cleaning time within 15 to 30 minutes.

5) Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.

6) It can be used alone or connected to production lines, and can be combined with capping machine, labeling machine, inkjet printer, etc., to save labor and increase output.
