An automatic piston quantitative bottle filling machine for sauce is a type of packaging equipment that is specifically designed to fill bottles with sauce or other similar liquid products. This type of filling machine typically uses a piston-based system to dispense precise amounts of sauce into the bottles.

The filling process begins when the bottles are placed onto the machine’s filling nozzles. The machine then uses a piston to push the sauce out of a hopper and into the bottles. The amount of sauce dispensed can be adjusted based on the size of the bottle and the desired filling volume.

Automatic piston quantitative bottle filling machines for sauce can be equipped with various features to improve their accuracy and efficiency. For example, some machines have built-in scales or load cells to measure the weight of the product being dispensed, and others have automatic shut-off valves to prevent overfilling. Some machines also have controls to adjust the filling speed and volume based on the viscosity of the sauce being dispensed.

Overall, an automatic piston quantitative bottle filling machine for sauce can help to improve the efficiency and accuracy of the filling process, and can be an essential piece of equipment for businesses that produce and package sauce products.

Application:

Automatic Piston Quantitative Bottle Filling Machine (LFH-DH-06) For Sauce, it is suitable for filling liquids and pastes of any fluidity in medicine, food, cosmetics and other industries.

Examples:

Sauce, chocolate sauce, ketchup, syrup, pesticide, edible oil, juice, shampoo, fruit juice, honey, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Sample:

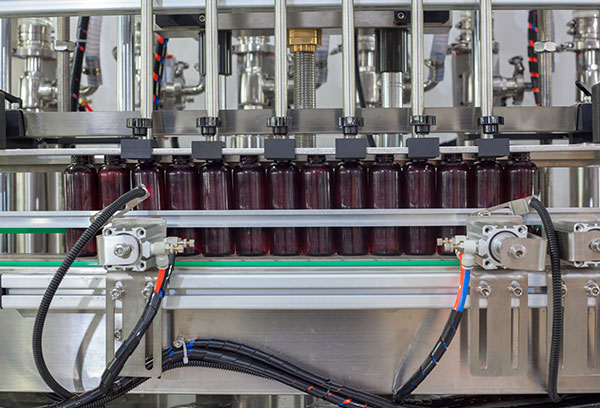

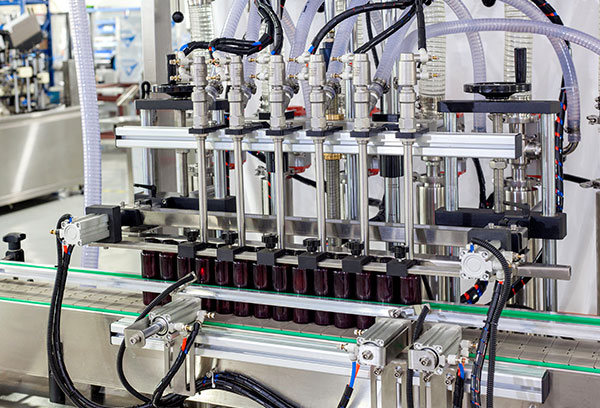

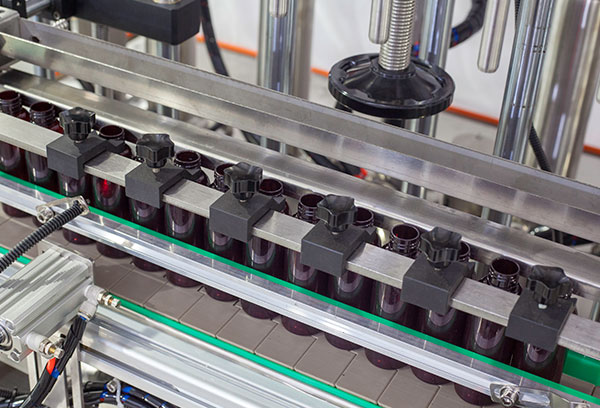

Automatic Piston Quantitative Bottle Filling Machine For Sauce

ModelVK-006
Filling range50-1000ml
Filling speed<30-50 bottles/min(Base on100-500ml)
Measurement accuracy±1%
Power380V,220V / 3.2kw
Working air pressure6-7kg/㎡
Gas consumption0.6mpa
Weight1200kg

Machine easy to maintain, without any tools can be easily removed for cleaning installation, easy adjustment. When adjusting the filling volume, first you can wild range adjust and then fine-tuning.No bottle no filling.

Machine equipped with anti-dropping and submersible filling function suit for different viscosity product.

Material automatic feeding which makes the machine easy to operate.

The machine filling system adopts sanitary quick clamp fittings. With out any tools can be quick dissemble.
