An automatic piston servo paste liquid filling machine is a type of automated filling machine that is specifically designed to handle viscous or semi-viscous products, such as pastes, gels, creams, and other thick liquids. It typically uses a piston or ram to dispense precise amounts of the product into containers, such as bottles, jars, or tubes.

The servo motor in the machine provides precise control over the movement of the piston, allowing the machine to dispense accurate and consistent amounts of product. This can be especially important in industries such as pharmaceuticals, cosmetics, and food processing, where precise dosages and consistent product quality are critical.

The machine may also have additional features, such as automatic filling and capping, labeling, and packaging capabilities, to further automate the filling process and increase efficiency.

Application:

Automatic Piston Servo Paste Liquid Filling Machine is suitable for the automatic filling of various bottle types in paste and liquid form. It is also suitable for canning corrosive liquids.

Examples: Shampoo, honey, laundry liquid, shower gel, lotion, machine oil, soup, detergent solvents, alcohol, specialty chemicals, paint, inks, automobile glass water, corrosive chemicals i.e. acids and bleach.

Packaging Type: It is suitable for various materials, and various bottle types, and has a wide range of applications.

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:

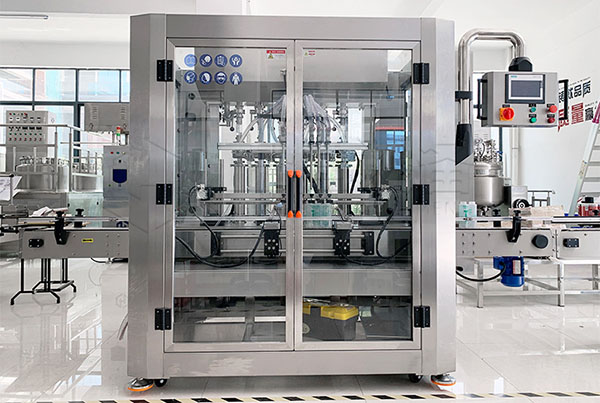

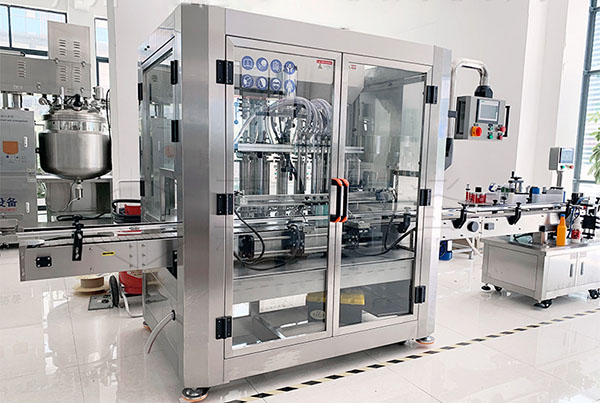

Automatic Piston Servo Paste Liquid Filling Machine

Main structure of automatic piston filler

20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option;

Main body of the machine is made of 304SS;

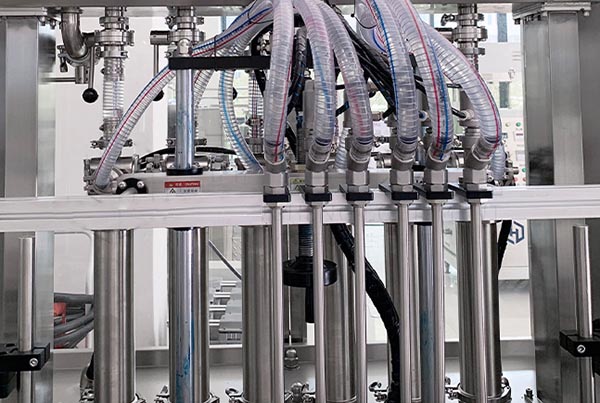

Filling nozzles, filling nozzles are specially designed for anti-drop sauce filling;

Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option;

PLC control system, and HMI operation;

Specially made horse and valve for honey, with CIP system connection;

Machine Parameters:

ModelLF-LH-06
Filling Speed20-80 bottles/min
Air Pressure0.4-0.8mpa
Filling Error1%
Filling Range50-1000ml
Filling WayPiston
Control MethodTouch control
Number of Filling Heads6 heads (customizable)
Feeding MethodAutomatic feeding
Electrical ComponentsSchneider
Power Supply380V50Hz 2.5KW
Equipment Weight1000kg
Equipment size3000*1300*2100mm

1. Simple structure in linear type, easy to install and maintenance.

2. Piston filling method, accurate and stable, suitable for thick material.

3. The filling range and speed can be designed according to user needs to design different filling head numbers.

4. Adopting advanced world-famous brand components in pneumatic parts, electric parts, and operation parts.WEINVIEW touchscreen, MITSUBISHI PLC, CHNT switch, etc.

5. The whole machine is made of SS304 material, and can meet the requirement of GMP.

6. Can be used for filling containers of different capacities and shapes without the need for additional replacement parts.

7. It can be used alone or connected to production lines, and can be combined with a capping machine, labeling machine, date printer, etc.

8. Easy to clean, all material contact parts can be quickly disassembled and cleaned.
