Application:

Automatic syrup bottle filling and capping machine, is suitable for filling liquids and pastes of any fluidity in medicine, food, cosmetics, and other industries.

Examples: syrup, oral liquid, sauce, shampoo, fruit juice, etc.

Packaging Type: Bottles, Cans, Tins, Barrel, Capsule, Cartons, Stand-up Pouch

Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other

Kindly Reminder:

We have an experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

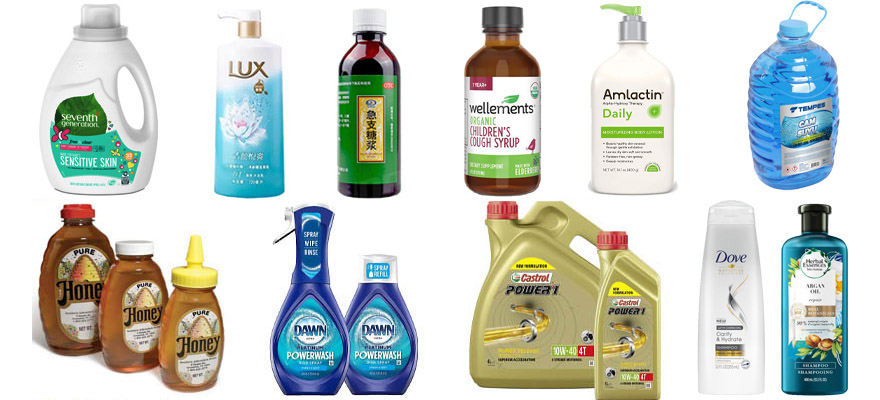

Packaging Samples

Automatic Piston Viscous Liquid Filling Machine

Technical Parameter

Filling Nozzles1-16Nozzles
Production Capacity800 -5000Bottles Per Hour
Filling Volume100-500ml,100ml tp 1000ml
Power2000W, 220VAC
Accuracy±0.1%
DrivenPanasonic Servo Motor
InerfaceSchneider Touch Screen

Products to Fill:

1) hot fill ( 35~40℃), cold filling normal temperature

2) Specific Gravity: 1.1~1.4 gr/m³

3) Spreading Chocolate past • Honey • Spreading Cheese paste, Molasses.

Bottle type:

1) PET bottle • Quadrant Cross section • Volume 250 ml. • neck 32 mm.

2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume 200 ~ 350 ml. • neck 45 mm.

Filling tolerances:  /- max 0.5%

Main Structure

1. 20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option

2. Main body of the machine made by 304SS

3. Filling nozzles, filling nozzles are specially designed for anti-drop sauce filling

4. Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for the option

5. PLC control system, and HMI operation

6. Especially made horse and valve for honey, with CIP system connecting horse

Competitive Advantage

1. There are many advantages of the automatic piston-filling machine.

2. PLC control, operation on the touch screen.

3. Panasonic servo motor driven, automatically adjust the Filling size on HMI, eg. Users want To fill 500g sauce, users just input the number 500, then the machine will automatically adjust.

4. It is volumetric by a piston, with high filling accuracy.

5. With top Double jacketed heating and mixing tanks.

6. The automatic sauce-filling machine also can have the function of a CIP system which will connect the users’ CIP system.

7. The horse of the sauce filler is specially made according to the sauce’s nature, with no dead corners, and food grade.

8. Specially made rotary valve for viscous sauce transfer.

Are you tired of manual filling processes that are time-consuming and prone to errors? Say goodbye to those inefficiencies with our state-of-the-art Automatic Piston Viscous Liquid Filling Machine. Designed to meet the demands of modern production lines, our machine offers precision, speed, and reliability, revolutionizing the way you handle viscous liquids.

Precision Engineering:

Our Automatic Piston Viscous Liquid Filling Machine is engineered with precision in mind. It utilizes advanced piston technology to ensure accurate filling levels every time, minimizing wastage and maximizing efficiency. Whether you’re filling creams, pastes, gels, or sauces, rest assured that each container will be filled with consistent precision.

Versatility:

One of the key features of our filling machine is its versatility. With adjustable filling volumes and speed controls, it can adapt to a wide range of product types and production requirements. Whether you’re filling small containers or large drums, our machine can handle it all with ease, making it ideal for various industries such as cosmetics, food and beverage, pharmaceuticals, and more.

Efficiency and Speed:

Time is money, and our Automatic Piston Viscous Liquid Filling Machine is designed to save you both. With its high-speed filling capabilities, you can significantly increase your production output without compromising on accuracy or quality. Say goodbye to bottlenecks and long lead times – our machine ensures smooth and efficient filling operations, keeping your production line running at optimal levels.

User-Friendly Interface:

We understand the importance of simplicity and ease of use in a production environment. That’s why our filling machine features an intuitive user interface that makes operation a breeze. With user-friendly controls and a clear display, operators can easily set parameters, monitor filling progress, and make adjustments on the fly, minimizing downtime and maximizing productivity.

Hygienic Design:

Maintaining product quality and hygiene is paramount, especially in industries like food and pharmaceuticals. Our Automatic Piston Viscous Liquid Filling Machine is designed with hygiene in mind, featuring smooth, stainless steel surfaces that are easy to clean and sanitize. With sanitary fittings and seals, you can ensure that your products remain uncontaminated throughout the filling process.

Reliability:

When it comes to production equipment, reliability is non-negotiable. Our filling machine is built to last, with robust construction and high-quality components that withstand the rigors of daily use. With proper maintenance and care, you can count on our machine to deliver consistent performance for years to come, providing a solid return on your investment.

In conclusion, our Automatic Piston Viscous Liquid Filling Machine is a game-changer for any production environment. With its precision engineering, versatility, efficiency, user-friendly interface, hygienic design, and reliability, it offers everything you need to streamline your filling operations and take your production to the next level. Say hello to increased productivity, reduced waste, and happier customers with our cutting-edge filling solution.
