Application:

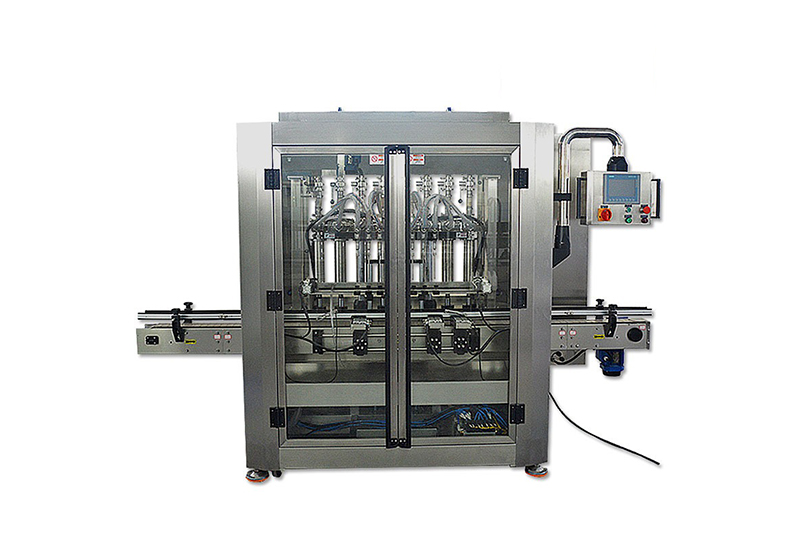

Automatic viscous liquid piston type filling machine, it is suitable for filling liquids and pastes of any fluidity in medicine, food, cosmetics and other industries. Such as alcohol disinfectant, hand sanitizer, disinfectant, alcohol spray, syrup, oral liquid, sauce, shampoo, fruit juice, etc.
Packaging Type: Bottles, Cans, Tins, Barrel, Capsule, Cartons, Stand-up Pouch
Packaging Material: Glass, Metal, Paper, Plastic, Wood, Other
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
Technical Parameter
| Filling Nozzles | 1-16Nozzles |
| Production Capacity | 800 -5000Bottles Per Hour |
| Filling Volume | 100-500ml,100ml tp 1000ml |
| Power | 2000W, 220VAC |
| Accuracy | ±0.1% |
| Driven | Panasonic Servo Motor |
| Inerface | Schneider Touch Screen |
Products to Fill:
1) hot fill ( 35 ~ 40℃) , cold filling normal temperature
2) Specific Gravity: 1.1 ~1.4 gr/cm3
3) Spreading Chocolate past • Honey • Spreading Cheese paste, Molasses.
Bottle type:
1) PET bottle • Quadrant Cross section • Volume 250 ml. • neck 32 mm.
2) Glass Jars & PE, PET Jars • Cylindrical Cross section • Volume 200 ~ 350 ml. • neck 45 mm.
Filling tolerances: /- max 0.5%
Main Structure
1. 20L to 200L Top hopper for option, double Jacket hopper with heating and mixing system for option,
2. Main body of machine made by 304SS

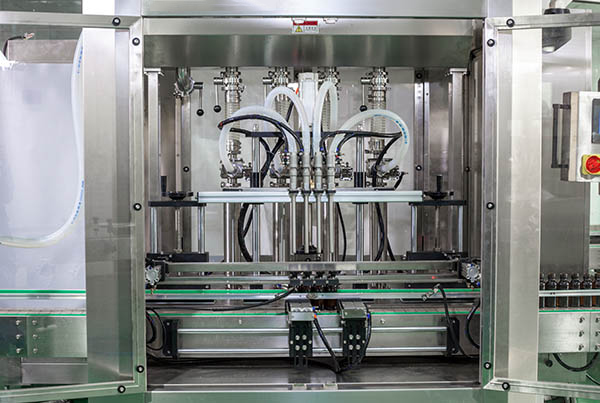

3. Filling nozzzles, filling nozzles are specially design for anti-drop sauce filling
4. Filling nozzles moving up and down by air cylinder, and servo motor moving up and down for option
5. PLC control system, and HMI operation
6. Specially made horse and valve for honey, with CIP system connect horse.
Competitive Advantage
1. There are many advantages of the automatic piston filling machine

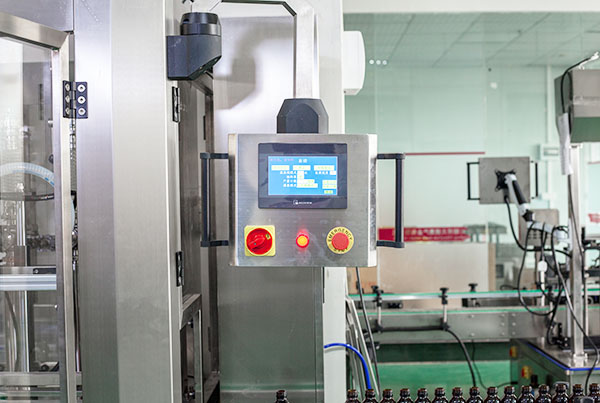

2. PLC control, operation on touch screen.
3. Panasonic servo motor driven , automatic adjust the Filling size on HMI, eg. Users want To fill 500g sauce, users just input the number 500, then the machine will automatic adjust.
4. It is volumetric by piston, high filling accuracy.
5. With top Double jacketed heating and mixing tanks.
6. The automatic sauce filling machine also can has the function by CIP system which will connect the users CIP system.
7. The horse of the sauce filler are specially made according to the sauce nature, no dead corner, food grade.
8. Specially made rotary valve for viscous sauce transfer.
Are you in search of a reliable solution to optimize your production line for viscous liquids? Look no further than our Automatic Viscous Liquid Piston Type Filling Machine. Engineered with precision and crafted for efficiency, this cutting-edge equipment is designed to meet the demands of modern manufacturing.
At VKPAK, we understand the challenges businesses face when it comes to filling viscous liquids accurately and efficiently. That’s why we’ve developed a solution that combines advanced technology with user-friendly design, allowing you to streamline your production process and increase your output with ease.
Our Automatic Viscous Liquid Piston Type Filling Machine is equipped with state-of-the-art features to ensure precise filling every time. The piston-driven mechanism delivers consistent results, minimizing wastage and maximizing productivity. Whether you’re filling sauces, pastes, creams, or other viscous liquids, this machine is up to the task.
One of the standout features of our filling machine is its versatility. With adjustable filling volumes and speeds, you have full control over the filling process, allowing you to customize it to suit your specific requirements. Whether you’re filling small bottles or large containers, this machine can handle it all with ease.
In addition to its precision and versatility, our Automatic Viscous Liquid Piston Type Filling Machine is also designed with efficiency in mind. Its compact footprint saves valuable floor space, while its intuitive controls make operation simple and hassle-free. Plus, with easy-to-clean components, maintenance is a breeze, ensuring minimal downtime and maximum uptime for your production line.
But don’t just take our word for it – our filling machine has been rigorously tested and proven to deliver exceptional results. Countless businesses across various industries rely on our equipment to streamline their production processes and stay ahead of the competition.
When you invest in our Automatic Viscous Liquid Piston Type Filling Machine, you’re not just investing in a piece of equipment – you’re investing in your business’s success. With its unmatched precision, versatility, and efficiency, this machine is the perfect solution for businesses looking to optimize their production of viscous liquids.
In conclusion, if you’re in need of a reliable solution to streamline your production line for viscous liquids, look no further than our Automatic Viscous Liquid Piston Type Filling Machine. With its advanced features, user-friendly design, and proven performance, it’s the perfect choice for businesses looking to take their operations to the next level.
