Fully Automatic Jam Filling Machine For Bottle/Jar

Application:

It is suitable for the quantitative filling of various oils such as jam, yogurt, petroleum jelly, vaseline, ketchup, tomato sauce, mayonnaise, paste, oil, cream, hot sauce, chili sauce, honey, etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, and Others.

Kindly Reminder:

Model	VKLJ-800
Filling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Filling Speed	25-40 bottles/min(base on oil)
Measurement Accuracy	≤1%
Power	110/220V 50-60HZ
Conveyor size	2000*100mm(L*W)
Size of filling nozzle	OD15mm
Size of air compressor connector	Φ8mm

1. Piston-type metering cylinder, servo-driven, suitable for filling thick sauce with large particles.

2. The special sauce anti-drip filling head and the enlarged rotary valve will not block or leak when filling large-grain sauce.

3. The horizontal mixing and horizontal pushing design improves the filling speed and solves the problem of uneven oil stratification.

4. Quality is reliable, simple operation, and durable, it is the ideal equipment for liquid filling.

5. Metal can capping machine provides customization according to the customer’s product.

6. PLC control, touch bottle operation, simple and convenient operation.

7. The use of internationally famous brand electrical components, performance, and stability.

8. The machine body is made of 304 stainless steel, which is easy to clean, machine is in full compliance with GMP requirements.

9. Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.

Fully automatic jam filling machines are used for filling and packaging jams, jellies, marmalades, and other similar products. These machines are designed to accurately fill the jars or bottles with the required amount of product while ensuring consistency in the viscosity and texture of the jam.

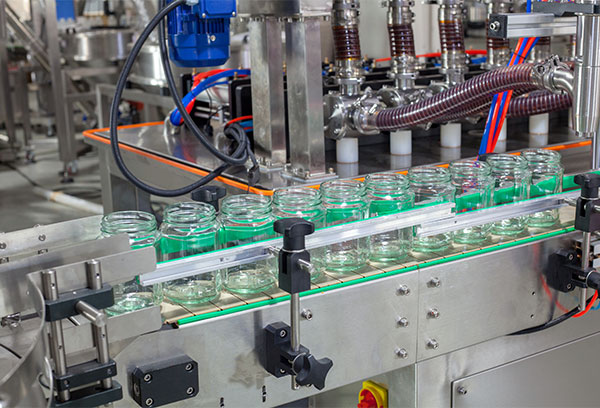

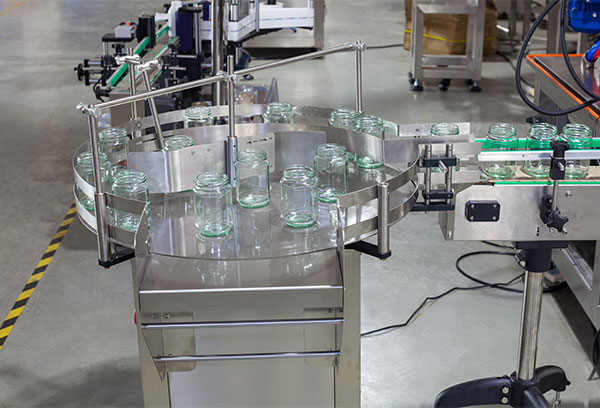

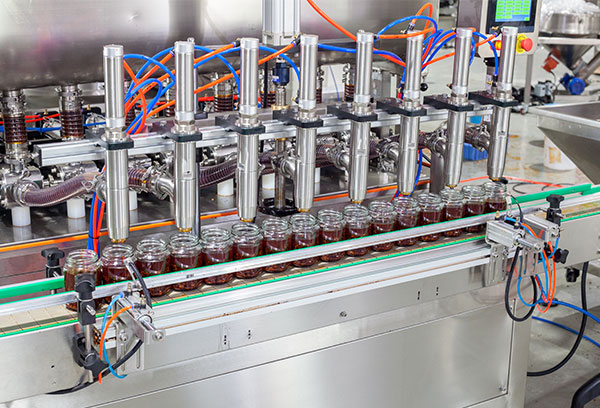

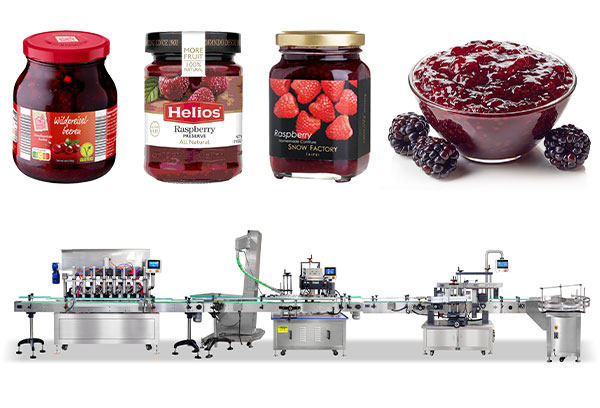

The jam filling machine typically consists of a conveyor belt that transports the empty jars or bottles to the filling station. The filling station has a piston filling system that fills the jars with the desired amount of jam. Once the jars are filled, they move on to the capping station, where the caps are applied and tightened securely. After capping, the jars move on to the labeling station, where labels are applied and the jars are inspected for quality control.

The filling machine is constructed of food-grade stainless steel to ensure cleanliness and hygiene. The filling nozzles are designed to prevent dripping, which ensures that the filling process is clean and efficient.

The machine is controlled by a PLC (programmable logic controller) and an HMI (human-machine interface) that enables operators to monitor and control the filling process. The PLC ensures that the filling, capping, and labeling processes are synchronized and operate smoothly.

The jam filling machine can be customized to meet the specific requirements of different jam products, such as different container sizes, product viscosities, and filling volumes. These machines are widely used in the food processing industry for their high efficiency, accuracy, and consistency in filling and packaging jam products.
