Fully Automatic Sauce Filling Machine For Bottle and Jar

A fully automatic sauce filling machine is a type of packaging equipment that is used to fill bottles and jars with liquid products, such as sauces, dressings, syrups, and other food products. These machines are typically used in high-volume production environments to fill containers quickly and accurately.

There are many different types of fully automatic sauce filling machines, which can be designed to handle a variety of container sizes, filling speeds, and product viscosities. Some common features of these machines include:

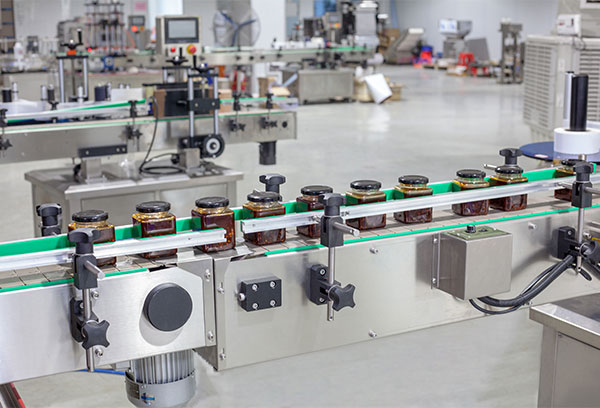

• A conveyor system to transport containers through the filling process
• A filling nozzle that dispenses the product into the container
• A filling head that moves up and down to adjust the filling volume
• Sensors and other control systems to ensure accurate filling and to detect any defects or malfunctions

Fully automatic sauce filling machines can be used in a variety of industries, including food and beverage, pharmaceutical, personal care, and chemical. They are typically used in conjunction with other packaging equipment, such as capping machines, labeling machines, and inspection systems, to create a complete packaging line.

Application:

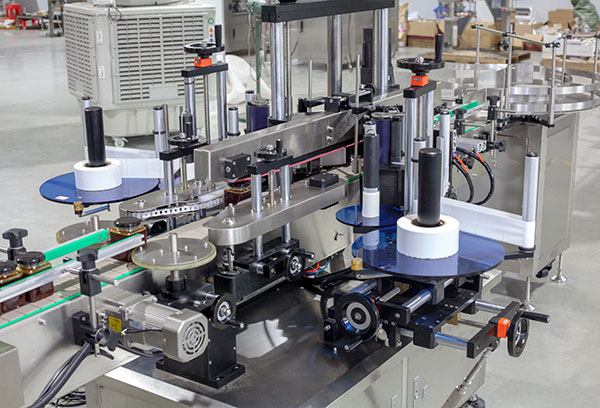

Fully automatic sauce filling machine for bottle and jar, using piston quantitative filling machine and sleeve labeling machine. It suitable for sauce, ketchup, mayonnaise, shampoo, juice, edible oil, sauce, daily necessities, medicine, etc;

Packaging Type:

Bottles, Cans, Tins, Barrel

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Samples:

Model	VKLJ-800
Filling Range	5-100ml/10-300ml/50-500ml/100-1000ml/500-3000ml/1000-5000ml
Filling Speed	25-40 bottles/min(base on oil)
Measurement Accuracy	≤1%
Power	110/220V 50-60HZ
Conveyor size	2000*100mm(L*W)
Size of filling nozzle	OD15mm
Size of air compressor connector	Φ8mm

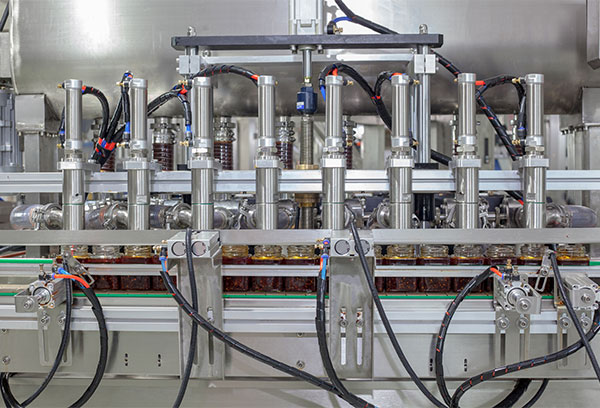

1. Piston-type metering cylinder, servo-driven, suitable for filling thick sauce with large particles.

2. The special sauce anti-drip filling head and the enlarged rotary valve will not block or leak when filling large-grain sauce.

3. The horizontal mixing and horizontal pushing design improves the filling speed and solves the problem of uneven oil stratification.

4. Quality is reliable, simple operation, and durable, it is the ideal equipment for liquid filling.

5. PLC control, touch bottle operation, simple and convenient operation.

6. The use of internationally famous brand electrical components, performance, and stability.

7. The machine body is made of 304 stainless steel, which is easy to clean, machine is in full compliance with GMP requirements.

8. Peristaltic pump or piston pump filling system, measuring precision, convenient manipulation.
