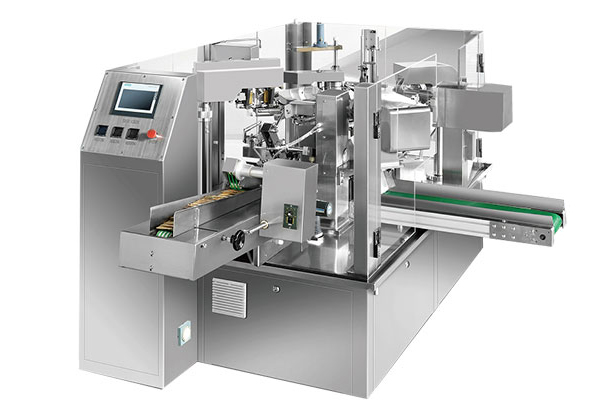

Automatic Rotary Premade Pouch Doypack Packing Machine

Application:

1. Solid: leisure food(candy, chocolate, cakes, puffed food)etc;

2. Grain: condiment(monosodium glutamate, chicken essence, granulated sugar) dry fruit (nuts), seeds,grain medicine, feed etc;

3. Powder: protein powder, condiment, monosodium glutamate, salt, glucose,narrowly sugar, milk powder etc;

4. Lquid: yellow wine, soy sauce, rice juice, drink, detergent etc;

5. Thick liquid: detergent, juice, beverage, ketchup, jam etc.

Bag type: 3-side, 4 side sealing bag, stand-up bag, handbag, spout bags, zipper bag, compound bag, etc.

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Examber:

Model	VK-8200/VK-8250
Packing material	3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc
Size	W：70-200/100-250
Filling range	10-1000g/20-2500g
Packing speed	40-60bag/min（speed is determined by the product filling quantity）
Average precision	≤ ±1%
Total power	2.5KW
Dimensions	1900mm X 1570mm X 1700mm（L*W*H）
Work flow	giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product
Main standard parts	1. Code printer 2. PLC control system 3.Bag opening device 4. Vibration device 5.Cylinder 6. Electromagnetic valve 7. Temperature controller 8.Vacuum pump 9. Inverter 10. Output system

1. Wide application : various shapes, state and nature of products (such as block, granules, powders, liquid/ Sauce, pickles, carrots products, etc.)

2. Easy to operate: PLC controller HMI system makes easy operation.

3. Easy to adjust: Synchronously adjust machine clamp, and parameters for different products can be saved and available from database when changing products.

4. High Automation: Complete all actions by end cam, whose machining technology is more simple than grooved cam, thus cost lower. The highest speed can reach 60pcs/min

5. Perfect Prevention System: when the bag is not open or not opened enough, it will be non-filling and non-sealing, so the empty bags return to the first station to refill and not wasted and it will save the production cost.

6. Stainless steel/other materials ensure sanitation and safety, meet the GMP standard.

7. Oil-free vacuum pump: avoid production environment pollution.

8. Waterproof Design: direct water-washing the machine surface, easy to clean, prolong the useful life.

9. Premade bag packing: high sealing quality, upgrade the finished product.

10. Adopt concentrated oil-supplied lubrication device inside the grooved cam. time, mechanical actions are controlled by end cam and tension springs, empty bag cycline.

The automatic rotary premade pouch doypack packing machine is a packaging machine used to fill and seal premade pouches. It is commonly used in the food, pharmaceutical, and cosmetic industries.

The machine has a rotary design, with several stations for filling, sealing, and packaging the product. It can handle various types of premade pouches, including doypack, flat, and zipper pouches.

The filling system is typically a multi-head weigher or volumetric cup filler, which accurately measures the desired amount of product. The premade pouches are then loaded onto the rotary system, which moves them through the filling and sealing stations.

The sealing method can vary depending on the product and pouch material, but commonly used methods include heat sealing, ultrasonic sealing, and ziplock sealing.

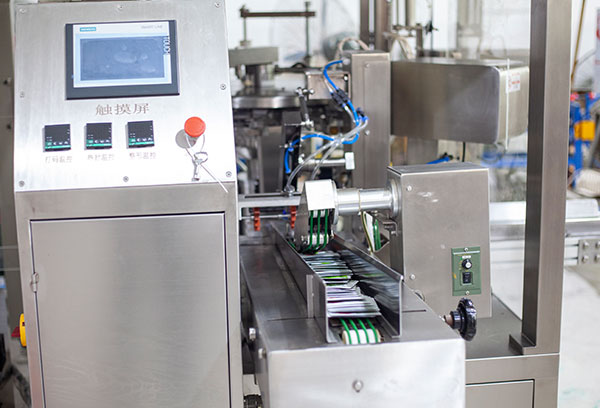

The machine is fully automatic, meaning it requires minimal operator intervention. It has a touch screen control panel that allows for easy programming and adjustment of the machine settings.

Overall, the automatic rotary premade pouch doypack packing machine is a reliable and efficient packaging solution that can increase productivity and reduce labor costs for manufacturers.
