Automatic Talcum Powder Weighing And Filling Machine

Application:

Automatic talcum powder weighing and filling machine, it is widely used in powder filling machine featured with High speed,good accuracy and  stable performance

Examples:

talcum, milk powder, coffee powder, spice powder, tea powder, protein powder and bean powder, etc.

Packaging Material:

Glass, Metal, Paper, Plastic, Wood, Other

Kindly Reminder:

We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.

Packaging Sample:

Multifunction Automatic Powder Filling Machine 99.9% Filling Precision
Model	VK-PJ-02	VK-02
Filling Weight	10-5000g(customizable)	10-5000g(customizable)
Bottle diameter	Φ30-Φ140mm(customizable)	Φ30-Φ140mm(customizable)
Bottle height	50mm-200mm(customizable)	50mm-200mm(customizable)
Yield	10-20 Bottle/min	20-40 Bottle/min
Measurement accuracy	≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material)	≤500g，≤±1%；＞500g，≤±0.5% (Varies due to the characteristics of the material)
Power	2.5KW	5KW
Silo capacity	50L	50L
Power Supply	220V、50Hz	220V、50Hz
Working Pressure	0.6-0.8MPa	0.6-0.8MPa
Weight	350kg	550kg

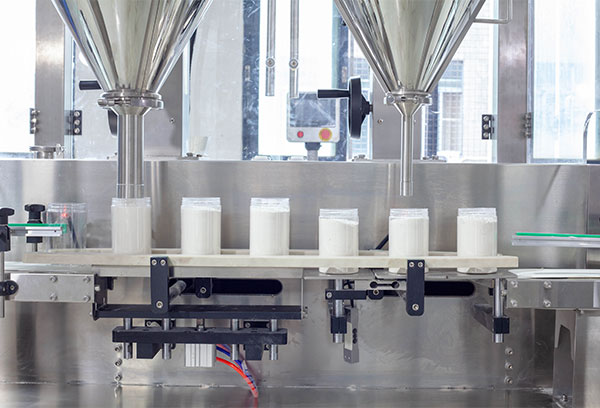

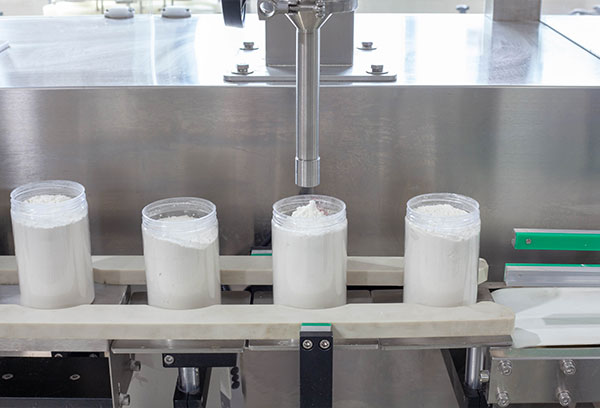

Automatic two-head Auger type metering/filling system works with the automatic capping machine.

Able to work with the double star wheels for bottle/can conveying & positioning system to perform the filling operation.

Conveyor is mounted a precision splitter to perform the intermittent movement for bottle/can to achieve the accurate positioning function.

Transmission system of the filling machine is driven by Japan Panasonic servo motor for high accuracy and stability.

Auto bottle/can positioning, lifting and vibrating, filling system is able to stop filling automatically when there’s no bottle, and when bottle jammed occurs, the machine (system) will also stop automatically.

10 sets of memory modules for memorizing different kinds of products and filling weights.

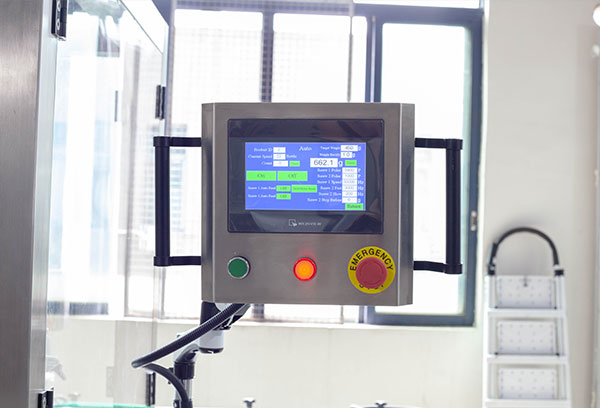

HMI touch screen for operational control.

Japan Panasonic PLC.

Available to connect with material supply system at pre-section for auto linking connection.

Available to link with the capping and labeling systems… etc. at post section.

Are you tired of the tedious and time-consuming process of manually weighing and filling talcum powder? Say goodbye to inefficiency and hello to streamlined production with our state-of-the-art Automatic Talcum Powder Weighing and Filling Machine.

Designed to meet the demands of modern manufacturing, our machine combines precision engineering with advanced technology to deliver unparalleled performance. Whether you’re a small-scale operation or a large production facility, our machine is versatile enough to meet your needs.

Gone are the days of inconsistent fills and wasted product. Our Automatic Talcum Powder Weighing and Filling Machine ensures precise measurements every time, reducing product loss and maximizing efficiency. With customizable settings, you have full control over the weight and fill level, allowing you to meet the exact specifications of your product.

One of the standout features of our machine is its user-friendly interface. With intuitive controls and easy-to-follow instructions, you can quickly set up and operate the machine with minimal training. This means less downtime and more productivity for your business.

In addition to its efficiency, our machine is also built with durability in mind. Constructed from high-quality materials and engineered for reliability, you can trust that our machine will withstand the rigors of continuous use, delivering consistent results day after day.

But the benefits don’t stop there. Our Automatic Talcum Powder Weighing and Filling Machine is also designed with safety in mind. From its enclosed filling area to its emergency stop feature, we’ve taken every precaution to ensure the well-being of your operators and the integrity of your product.

Furthermore, our machine is highly adaptable to your production environment. Whether you need to integrate it into an existing line or customize it to fit your space constraints, our team of experts will work with you to find the perfect solution.

When you choose our Automatic Talcum Powder Weighing and Filling Machine, you’re not just investing in a piece of equipment – you’re investing in the future of your business. With increased efficiency, improved accuracy, and unparalleled reliability, you’ll wonder how you ever managed without it.

So why wait? Revolutionize your production line today with our Automatic Talcum Powder Weighing and Filling Machine. Contact us now to learn more and take the first step towards a more efficient and profitable future.
