Application:
Multi lane collagen protein powder 3/ 4 side sealing sachet packing machine connectable cartoning machine, it is Suitable for packing loose, non sticky powder material in the medicine, food, daily chemical and other industry, and automatic packing into sachets with measuring requirement. Such as health powder, protein powder, collagen powder, medicine powder,, coffee powder, milk powder, soymilk powder, starch, drug, pulveres, and so on..
Kindly Reminder:
We have experienced team of R & D engineers who can customize packaging solutions according to your product characteristics.
Packaging Samples
| Model | VK480F | VK720F | VK960F |
| Track Number | 4~6 Track | 4~10 Track | 4~12 Track |
| Filling Method | Auger Filling by servo motor | ||
| Capacity | Max.40 cycle/min | ||
| Sachet Size | L:45–120mm; W:50-60mm | L:45–120mm; W:50-90mm | L:45–120mm; W:50-120mm |
| Film Width & Thickness | Max.480mm;0.07-0.1mm | Max.720mm;0.07-0.1mm | Max.960mm;0.07-0.1mm |
| Sealing Type | 4 sides sealing | 4 sides sealing | 4 sides sealing |
| Cutting Type | 1. Straight Cutting; 2. Zig Zag Cutting; 3. Continuous Cutting | ||
| Air & Power | 0.8 mpa 0.8m³/min; 2.8kw | 0.8 mpa 0.8m³/min; 4.1kw | 0.8 mpa 0.8m³/min; 5.5kw |
| DIM & WT | 950*1470*1750mm; 300kg | 1153*1654*1750mm; 400kg | 1415*1686*2130mm; 500kg |
Advanced performance, high power, low noise, compact structure, operate steadily, easy to maintain, and has a long life span. Film sending mechanism can rotate with 90°in level, and add with film contacting mechanism, which make film change and maintain easier.Adopt five shaft servo motor in step driver, man-machine interface touch adjustment, controlled by PLC, it is precise in automatic in step positioning.
A high degree of automation, machine can finish packing at one time from longitudinal sealing, longitudinal cutting, transverse sealing, filling, embossing, notch cutting, cutting dotted line cutting, and transverse cutting to outputting finished sachets.
High precision whole rolling type heat sealing rollers are adopted as sealing mould, four side sealing, and multi-lane sachet form. With high packing speed, smooth bag shape, delicate and beautiful, packing and high efficiency.
Easy and fast to adjust, it can step-less adjust pouch length without changing the mould. And can adjust the functions as longitudinal sealing, transverse sealing, filling, embossing, Dotted line cutting, and transverse cutting through man-machine interface.

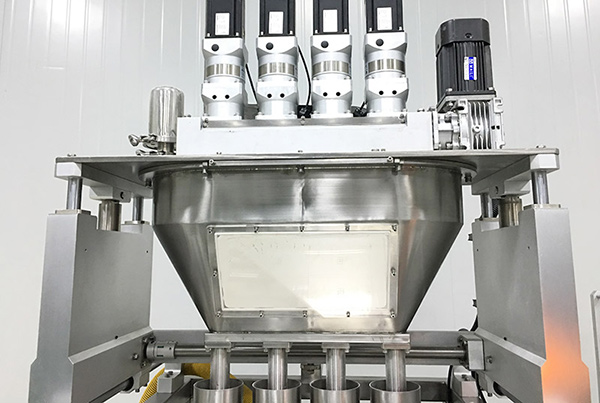

Accurate in measurement. According to different granule material, specially designed of cylinder pushing vibrating type or flat shape push pull type adjustable measuring mechanism. Vibrating type matches with triangle adjustable measuring cup feeding mechanism, push pull type designed with plate inside measuring cups, both feeding system can be adjusted independently and accurately, each line’s dosage can be adjusted easily and accurately.
Photoelectric tracking system is adopted to ensure correct printing and with automatic counting function.
The machine with film automatic correction and film damping mechanism, to ensure the straightness and tension stability of film, and make the pouch more smooth and beautiful.
Adaptability of the package film, the sealing temperature of machine is with automatic control, and has high control accuracy(±1℃). Suitable for most complex film packing film: such as PET/AL/PE, PET/PE, NY/ALPE, NY/PE and so on.
Extra functions set up, for example, sachet cutting can choose dotted line knife or flat cutting knife, abnormal shape knife etc, and can choose different kinds of alarm requirement.
Introducing the Multi Lane Collagen Protein Powder 3/4 Side Sealing Sachet Packing Machine, your ultimate solution for efficient and precise packaging of powdered supplements. Crafted with cutting-edge technology and designed to meet the highest standards of quality and reliability, this innovative packing machine streamlines your production process, ensuring seamless operation and consistent results.
At the forefront of the industry, our Multi Lane Collagen Protein Powder Packing Machine is equipped with multiple lanes, allowing you to pack multiple sachets simultaneously. This feature significantly increases productivity, enabling you to meet growing demands without compromising on efficiency or accuracy. Whether you’re a small-scale manufacturer or a large-scale production facility, this machine is tailored to suit your needs and scale with your business.
Precision is paramount when it comes to packaging powdered supplements, and our state-of-the-art machine delivers unparalleled accuracy with every sachet. The 3/4 side sealing mechanism ensures that your product is securely sealed, preserving its freshness and integrity throughout storage and transportation. Say goodbye to concerns about leaks or contamination – our packing machine is engineered to maintain the quality of your product from production line to consumer.
Versatility is another key feature of our Multi Lane Collagen Protein Powder Packing Machine. With customizable settings, you have the flexibility to adjust parameters such as sachet size, fill volume, and sealing pressure to accommodate a wide range of product specifications. Whether you’re packaging collagen protein powder, vitamins, or other powdered supplements, this machine adapts to your unique requirements with ease and precision.
Efficiency and reliability are the cornerstones of our design philosophy, and every aspect of our packing machine is optimized for peak performance. From its user-friendly interface to its robust construction, every detail is meticulously engineered to enhance usability, minimize downtime, and maximize productivity. With intuitive controls and minimal maintenance requirements, you can focus on growing your business with confidence, knowing that your production line is in capable hands.
In addition to its advanced features and superior performance, our Multi Lane Collagen Protein Powder Packing Machine is backed by comprehensive customer support. Our team of experts is dedicated to providing personalized assistance and technical guidance to ensure that you get the most out of your investment. Whether you have questions about installation, operation, or troubleshooting, we’re here to help every step of the way.
In conclusion, the Multi Lane Collagen Protein Powder 3/4 Side Sealing Sachet Packing Machine sets the standard for excellence in the packaging industry. With its innovative design, precision engineering, and unrivaled reliability, it empowers manufacturers to optimize their production process and deliver high-quality products to their customers. Invest in the future of your business with our state-of-the-art packing machine and experience the difference it can make for your bottom line.
